Shading

The rendering pipeline

The modern rendering pipeline can be represented as follows:

It consists of the following main stages:

  • Vertex processing: processes individual vertices.
  • Primitive assembly: connects vertices to form primitives.
  • Rasterization: converts each primitive into a set of fragments.
  • Fragment processing: processes individual fragments.
  • Output merging: combines the fragments of all primitives (in 3D space) into a 2D color pixel for the display.

Note the distinction between fragments and pixels. Pixels are the dots on the display. A pixel is 2-dimensional, with a (x, y) position and a color value. A fragment is 3-dimensional, with a (x, y, z) position. The (x, y) are aligned with the 2D pixel-grid. The z-value (not grid-aligned) denotes its depth. In addition to that, fragment processing stage assigns other attributes to the fragments such as color and alpha, that are to be combined in the output merging stage.

Vertex processing and fragment processing are programmable whereas the rest of the pipeline is hardwired in the GPU.

Refactoring

The time has come for a small refactoring (check the commit), here I split main.cpp in two. The idea is to mimic the rendering pipeline, I have extracted the parts of the code that the programmer cannot modify. Roughly speaking, it corresponds to the binary of the OpenGL library and the hardwired GPU rasterization.

Here are the files that we will no longer modify:

our_gl.h
#include "tgaimage.h"
#include "geometry.h"

void lookat(const vec3 eye, const vec3 center, const vec3 up);
void init_perspective(const double f);
void init_viewport(const int x, const int y, const int w, const int h);
void init_zbuffer(const int width, const int height);

struct IShader {
    virtual std::pair<bool,TGAColor> fragment(const vec3 bar) const = 0;
};

typedef vec4 Triangle[3]; // a triangle primitive is made of three ordered points
void rasterize(const Triangle &clip, const IShader &shader, TGAImage &framebuffer);
our_gl.cpp
#include <algorithm>
#include "our_gl.h"

mat<4,4> ModelView, Viewport, Perspective; // "OpenGL" state matrices
std::vector<double> zbuffer;               // depth buffer

void lookat(const vec3 eye, const vec3 center, const vec3 up) {
    vec3 n = normalized(eye-center);
    vec3 l = normalized(cross(up,n));
    vec3 m = normalized(cross(n, l));
    ModelView = mat<4,4>{{{l.x,l.y,l.z,0}, {m.x,m.y,m.z,0}, {n.x,n.y,n.z,0}, {0,0,0,1}}} *
                mat<4,4>{{{1,0,0,-center.x}, {0,1,0,-center.y}, {0,0,1,-center.z}, {0,0,0,1}}};
}

void init_perspective(const double f) {
    Perspective = {{{1,0,0,0}, {0,1,0,0}, {0,0,1,0}, {0,0, -1/f,1}}};
}

void init_viewport(const int x, const int y, const int w, const int h) {
    Viewport = {{{w/2., 0, 0, x+w/2.}, {0, h/2., 0, y+h/2.}, {0,0,1,0}, {0,0,0,1}}};
}

void init_zbuffer(const int width, const int height) {
    zbuffer = std::vector(width*height, -1000.);
}

void rasterize(const Triangle &clip, const IShader &shader, TGAImage &framebuffer) {
    vec4 ndc[3]    = { clip[0]/clip[0].w, clip[1]/clip[1].w, clip[2]/clip[2].w };                // normalized device coordinates
    vec2 screen[3] = { (Viewport*ndc[0]).xy(), (Viewport*ndc[1]).xy(), (Viewport*ndc[2]).xy() }; // screen coordinates

    mat<3,3> ABC = {{ {screen[0].x, screen[0].y, 1.}, {screen[1].x, screen[1].y, 1.}, {screen[2].x, screen[2].y, 1.} }};
    if (ABC.det()<1) return; // backface culling + discarding triangles that cover less than a pixel

    auto [bbminx,bbmaxx] = std::minmax({screen[0].x, screen[1].x, screen[2].x}); // bounding box for the triangle
    auto [bbminy,bbmaxy] = std::minmax({screen[0].y, screen[1].y, screen[2].y}); // defined by its top left and bottom right corners
#pragma omp parallel for
    for (int x=std::max<int>(bbminx, 0); x<=std::min<int>(bbmaxx, framebuffer.width()-1); x++) {         // clip the bounding box by the screen
        for (int y=std::max<int>(bbminy, 0); y<=std::min<int>(bbmaxy, framebuffer.height()-1); y++) {
            vec3 bc = ABC.invert_transpose() * vec3{static_cast<double>(x), static_cast<double>(y), 1.}; // barycentric coordinates of {x,y} w.r.t the triangle
            if (bc.x<0 || bc.y<0 || bc.z<0) continue;                                                    // negative barycentric coordinate => the pixel is outside the triangle
            double z = bc * vec3{ ndc[0].z, ndc[1].z, ndc[2].z };  // linear interpolation of the depth
            if (z <= zbuffer[x+y*framebuffer.width()]) continue;   // discard fragments that are too deep w.r.t the z-buffer
            auto [discard, color] = shader.fragment(bc);
            if (discard) continue;                                 // fragment shader can discard current fragment
            zbuffer[x+y*framebuffer.width()] = z;                  // update the z-buffer
            framebuffer.set(x, y, color);                          // update the framebuffer
        }
    }
}

I have isolated three state matrices ModelView, Viewport and Perspective (and helper functions to initialize them), as well as the zbuffer and triangle rasterization routine. Note the abstract class IShader. Each time the rasterizer draws a pixel in the framebuffer, it calls the virtual function fragment to decide the color of the pixel. Therefore, the programmer must define a shader object and pass it to the rasterize function.

Here is what is left of main.cpp:

main.cpp
#include <cstdlib>
#include "our_gl.h"
#include "model.h"

extern mat<4,4> ModelView, Perspective; // "OpenGL" state matrices and
extern std::vector<double> zbuffer;     // the depth buffer

struct RandomShader : IShader {
    const Model &model;
    TGAColor color = {};
    vec3 tri[3];  // triangle in eye coordinates

    RandomShader(const Model &m) : model(m) {
    }

    virtual vec4 vertex(const int face, const int vert) {
        vec3 v = model.vert(face, vert);                          // current vertex in object coordinates
        vec4 gl_Position = ModelView * vec4{v.x, v.y, v.z, 1.};
        tri[vert] = gl_Position.xyz();                            // in eye coordinates
        return Perspective * gl_Position;                         // in clip coordinates
    }

    virtual std::pair<bool,TGAColor> fragment(const vec3 bar) const {
        return {false, color};                                    // do not discard the pixel
    }
};

int main(int argc, char** argv) {
    if (argc < 2) {
        std::cerr << "Usage: " << argv[0] << " obj/model.obj" << std::endl;
        return 1;
    }

    constexpr int width  = 800;      // output image size
    constexpr int height = 800;
    constexpr vec3    eye{-1, 0, 2}; // camera position
    constexpr vec3 center{ 0, 0, 0}; // camera direction
    constexpr vec3     up{ 0, 1, 0}; // camera up vector

    lookat(eye, center, up);                                   // build the ModelView   matrix
    init_perspective(norm(eye-center));                        // build the Perspective matrix
    init_viewport(width/16, height/16, width*7/8, height*7/8); // build the Viewport    matrix
    init_zbuffer(width, height);
    TGAImage framebuffer(width, height, TGAImage::RGB, {177, 195, 209, 255});

    for (int m=1; m<argc; m++) {                    // iterate through all input objects
        Model model(argv[m]);                       // load the data
        RandomShader shader(model);
        for (int f=0; f<model.nfaces(); f++) {      // iterate through all facets
            shader.color = { std::rand()%255, std::rand()%255, std::rand()%255, 255 };
            Triangle clip = { shader.vertex(f, 0),  // assemble the primitive
                              shader.vertex(f, 1),
                              shader.vertex(f, 2) };
            rasterize(clip, shader, framebuffer);   // rasterize the primitive
        }
    }

    framebuffer.write_tga_file("framebuffer.tga");
    return 0;
}

In fact, our main() function follows closely the rendering pipeline, let us check it:

  • We declare few global constants: screen dimensions, camera position etc (lines 34-38).
  • Then all the state variables are initialized (lines 40-44)
  • and, finally, we loop over all triangles rasterizing them (lines 49-55).

Let's focus on the last part. The primitive assembly (lines 51-53) calls the vertex shader to position vertices in the space. Then the primitive is passed to the rasterizer (line 54), who calls the fragment shader to decide color of individual fragments.

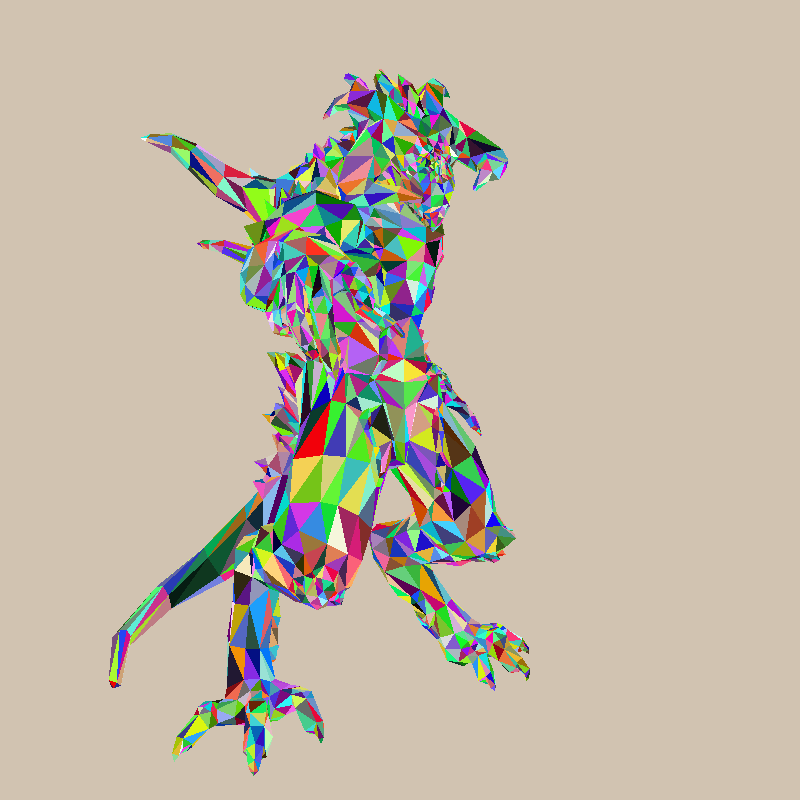

Here, the fragment shader is quite rudimentary and the final result is the same as in the previous chapter (after all, we did nothing but refactor the code!):

Phong reflection model

Now, let's talk about actual shading, i.e. lights and shadows. After all, programmable stages of the rendering pipeline are called shaders because approximation of the illumination is their main purpose. For the moment I ignore colors, let us say that the scene is painted gray, but I am very interested in illumination intensity. I want you to produce such an image by the end of this chapter:

In computer graphics, we often "cheat" for efficiency: computing global illumination is very expensive (we will see it a bit later), and we want to do cheap tricks that achieve the most visually plausible effects. The Phong reflection model is one such trick, a simple but effective way to approximate how light interacts with a surface in computer graphics. It assumes that the perceived brightness at a point on a surface is the sum of three components: ambient, diffuse, and specular reflection, each scaled by a weighting factor to control its influence.

  • The ambient term models indirect light — the constant background illumination present even in shadowed areas.
  • The diffuse term represents light scattered equally in all directions from rough surfaces.
  • The specular term simulates bright highlights on shiny surfaces caused by mirror-like reflection.

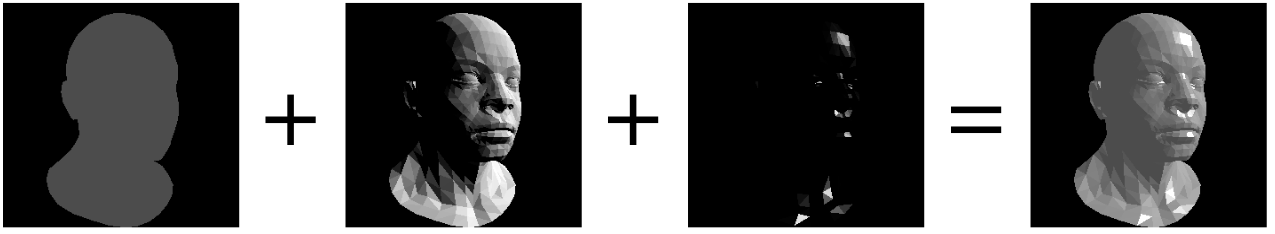

If we store each term in its own image, we can obtain the final result as a simple (weighted) sum:

By adjusting these weights, artists can control how "matte" or "shiny" a surface appears.

The practical recipe

Here's a nuts-and-bolts walkthrough of computing Phong lighting on a triangulated surface. For the moment we consider surfaces made of flat triangles, so the illumination is constant per triangle.

As mentioned earlier, the ambient term is a constant fill light, it doesn't depend on geometry. Let's focus on the diffuse (Lambert) term. It models matte scattering, i.e. received energy depends on how much the surface faces the light.

Imagine a solar panel. The sun is very distant, so all the light rays can be considered parallel. See this image:

The energy output of the panel depends on how many sun rays enter in the corridor between the dashed lines. For a 1D unit length panel, the width of the corridor can be computed as \(\cos \alpha\): it is 1 meter when the panel is orthogonal to the sun rays and it is zero when the panel is aligned with the sun rays.

Here's a quick question for you: cosine function gives values between -1 and 1. What do we do with negative length?

Spoiler Alert!

Imagine a solar panel perfectly orthogonal to the sun rays, but with solar cells facing the ground and not the sky. In this case it won't produce any energy at all, right? And it is exactly the case of negative \(\cos \alpha\). So the diffuse term is to be computed as \(|\cos \alpha|\) for two-sided facets or \(\max (0, \cos \alpha)\) for one-sided facets.

One question remains for the diffuse lighting: how to compute \(\cos \alpha\)? Imagine we have a 3D triangle described by three points \(A\), \(B\) and \(C\). Then its normal \(\vec n\) (the unit length vector orthogonal to the triangle) can be computed as the cross product between the edges:

\[ \vec n=\frac{\overrightarrow{AB} \times \overrightarrow{AC} }{||\overrightarrow{AB} \times \overrightarrow{AC}||}. \]

If \(\vec l\) is the (unit length) direction towards the sun, then \(\cos \alpha = \vec n \cdot \vec l\) and the diffuse term can be found as \(\max(0, \vec n \cdot \vec l).\) Here is an illustration:

The last step is to find out how to compute the specular term. Recall: this term simulates bright highlights on shiny surfaces caused by mirror-like reflection. Its intensity depends on the angle between the viewer's direction and the reflection direction of the light. Here is an illustration:

Here are the vector \(\vec v\) is the direction from the fragment to the camera, and the \(\vec r\) is the reflection of the sun light. Quick exercise: given vectors \(\vec n\) and \(\vec l\), find vector \(\vec r\).

Spoiler Alert!

If \(\vec n\) and \(\vec l\) are normalized, then \(\vec r = 2\vec n (\vec n \cdot \vec l ) - \vec l\).

A perfect mirror appears brightest if the viewer direction \(\vec v\) exactly matched \(\vec r\). For non-perfectly-polished materials, the highlight should fade away as \(\vec v\) moves away from \(\vec r\).

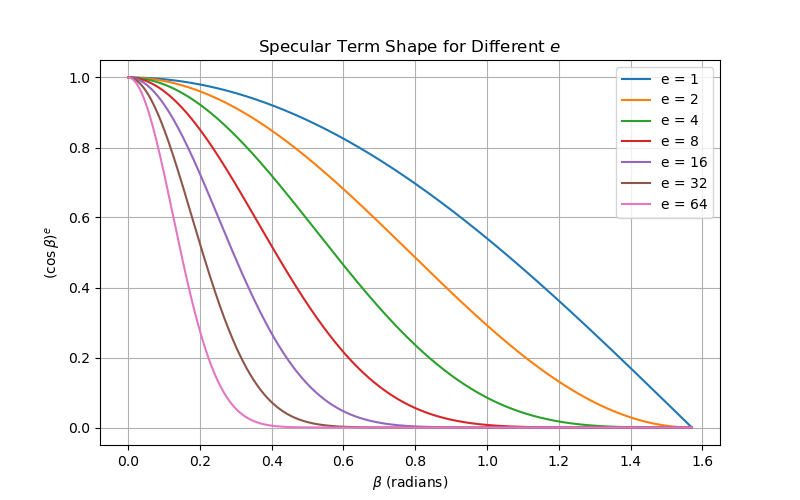

The dot product \(\vec r \cdot \vec v\) is \(\cos \beta\), where \(\beta\) is the angle between the viewing direction and the perfect reflection direction. To compute the specular term, we can simply raise this cosine to a shininess exponent \(e\), i.e. the specular term can be found as \((\max(0, \cos \beta))^e\). Recall that all numbers inferior to 1 will decrease when we raise them into power. Let's plot \(\cos^e \beta\) for different values of \(e\):

This power-law falloff is a mathematical hack giving narrow, tight highlight (polished metal, glossy plastic) for large exponents \(e\). For smaller \(e\), it corresponds to broad, soft highlight (matte or worn surfaces).

Homework assignment

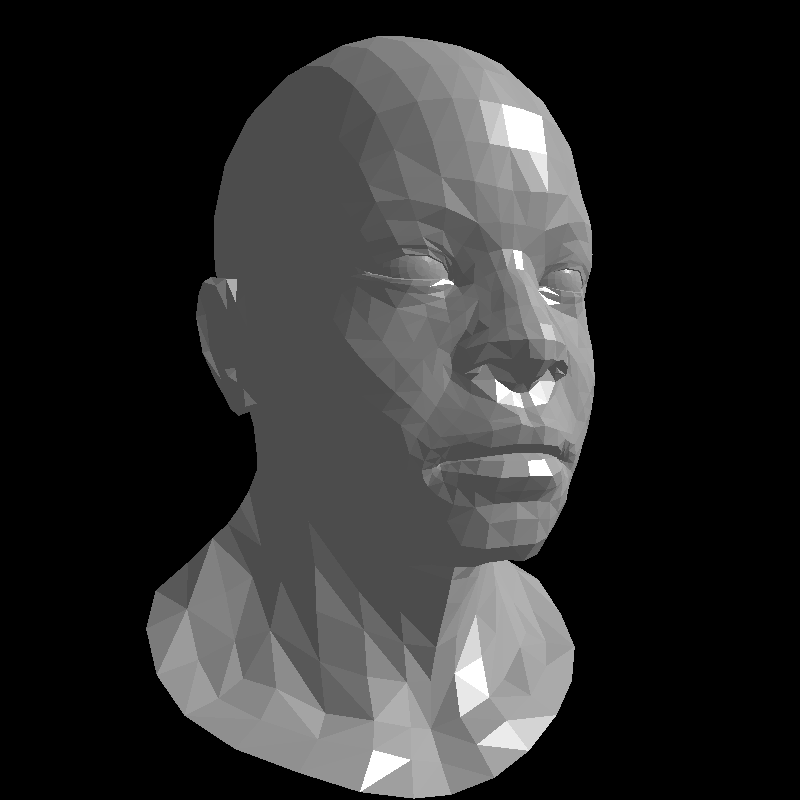

You have all the tools you need to implement Phong reflection model, try to do so, play with the coefficients. Can you replicate my results? Normally you need to tweak the fragment shader only. For reference, here is my attempt.

Next time we will talk about textures and normal mapping. Stay tuned!
